Digital Torque Wrench - CES/CES-G

Torque measurement range: 0.5 ~ 10 N･m (*) Tohnichi’s smallest digital torque wrench (*two models in the series). The optional Bluetooth module makes it easy to manage data on a computer or other device.

Application

• For tightening and inspection work in low torque regions, such as cable grounding, and plastic or ceramic screws/bolts.
• Useful in confined spaces and height-restricted locations where tightening with a torque screwdriver or conventional torque wrench is difficult.
• For tightening work involving fragile apparatus, such as sensors and semiconductor manufacturing equipment.

Features

• CES/CES-G monitors torque and angle to prevent the delivery of products with defective screw/bolt tightening.
• Equipped with a high-luminance LED. Permits confirmation of current tightening condition and pass/fail judgments from a wide range of angles. The high-luminance LED is especially useful in dark working conditions.
• Tightening-abnormality detection: monitors torque and angle to detect tightening abnormalities such as scuffing, missing parts, missed tightening (or double tightening), and O-ring nibbling, to prevent the delivery of defective products to clients.
• Data transmission: use a USB to output memory data. Permits no-fee use of the data-input tool DtRcv (Data Receiver) for data management in Excel® worksheets. Attach the optional Bluetooth module to wirelessly transmit tightening and inspection data to a computer. *The M-CES-BT Expansion Module is easy to attach.
• Use the Tightening Data Management System (TDMS) software (sold separately) to transmit conditions at each tightening location to the torque wrench and to transmit pass/fail data after tightening to a computer. (TDMS was upgraded to Version 3.10 in June 2023. Now also supports the compact Digital Torque Wrench CES series (when installed on M-CES-BT).)
• Tohnichi released the iOS version of the DtRcv (Data Receiver) on May 21, 2024. Please read the notes under the specification table.

Shown with a QH6D Ratchet Head (standard accessory) connected to CES5NX6D Ask for Price

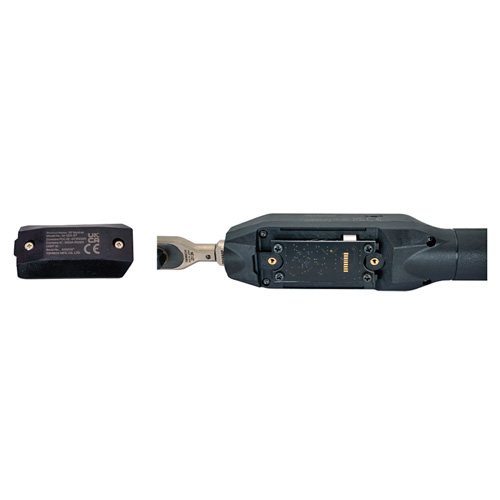

Attach the optional Bluetooth module (picture on the left) to wirelessly transmit tightening and inspection data to a computer. *The M-CES-BT Expansion Module is easy to attach. Ask for Price

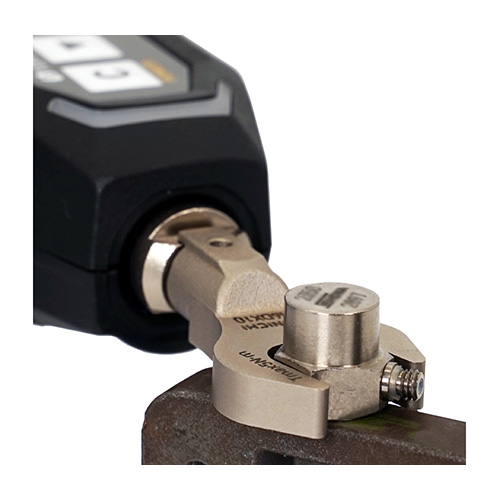

For tightening work involving fragile apparatus, such as sensors and semiconductor manufacturing equipment. Ask for Price

Specifications


Common Specifications


Notes

• The torque unit conversion-capable CES-G model is for use only outside Japan. Japan’s Measurement Law prevents it from being sold or used in Japan.
• As of July 2023, M-CES-BT conforms to the technical standards of Japan, the USA, Canada, the EU, China, Thailand, India, and Singapore. Can also be used in Mexico and Vietnam.
• Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
• Excel® is a registered trademark of Microsoft Corporation.
• iOS is the operating system trade name of Apple Inc.
• Tohnichi released the iOS version of the DtRcv (Data Receiver) on May 21, 2024. You can download the Japanese version and English version free of charge. *The DtRcv iOS version uses only a Bluetooth® connection. It cannot be used with a wired connection.

Standard accessory

• Battery Pack (BP-5)/QH compatibility
  *BC-3-G battery charger sold separately.
