Application
- For calibration and adjustment of torque wrenches
Features

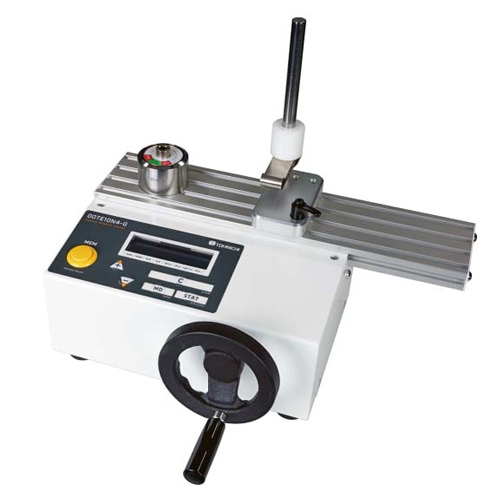

- DOTE4 and DOTE4-G digital torque wrench tester models have a Pass/Fail Judgment function. The LCD panel displays values in color, making it easy to verify whether measurement readings are within set parameters.
- Upper and lower parameter values can be entered by keystroke, or by entering a command in an external device, such as a computer or barcode reader. *Dedicated software ordered separately is required to enter a command from an external device.
- The loading device acts on the effective length of the torque wrench. This means that calibration conditions are uniform, permitting measurement accuracy.

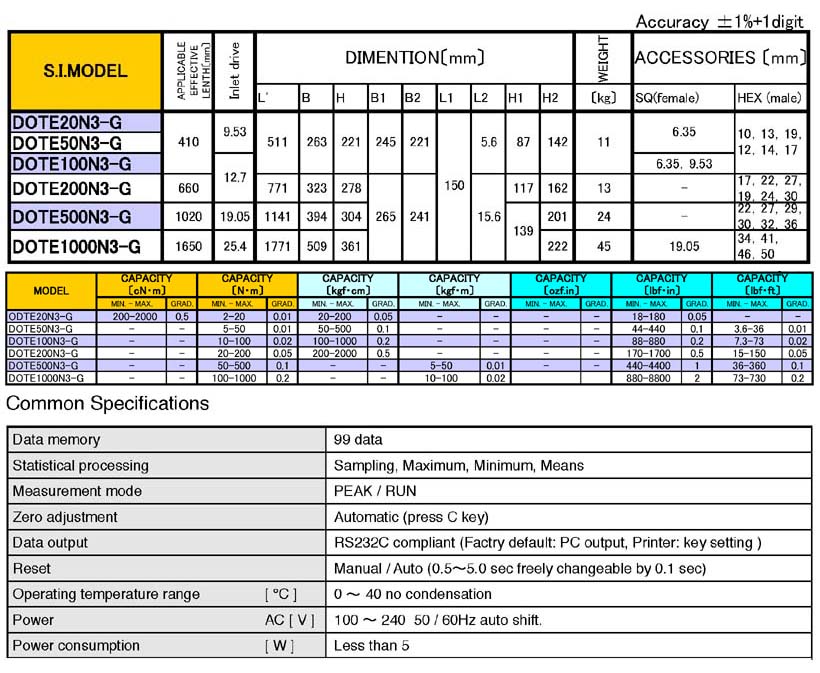

- Torque measurement resolution is more than double what was offered by the DOTE3 and DOTE3-G models.
- DtRcv (Data Receiver) is a wired data input tool facilitating Excel® data management, and can be downloaded without charge. * ExRcv (Excel Receiver) was upgraded to DtRcv (Data Receiver) in March 2021. * Excel® is a registered trademark of Microsoft Corporation. * To connect DOTE4 to a PC, Cable No. 383 or No. 385 (sold separately) is required.
- Outputs measurement results to a computer or dedicated printer, using RS232C / USB output connector

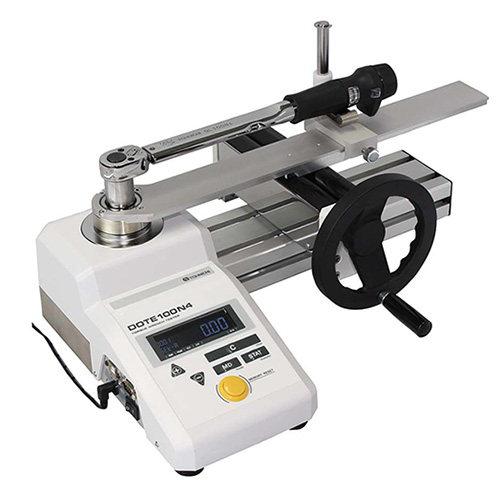

- The large DOTE500N4(-G) and DOTE1000N4(-G) models offer an optimal display position, making it easy to read the display during work.
- DOTE4-MD2 and DOTE4-G-MD2 models have a loading device with electric motor, ideal for calibrating, adjusting and repairing many torque wrenches.
- Also for DOTE4 and DOTE4-G models with a JCSS Calibration Certificate, and for models with a statement of calibration uncertainty.
- Power source : AC100V-240V, available for international use.
- CE markings applied for use in the EU.
Specifications
| MODEL | DOTE10N4-G | DOTE20N4-G | DOTE50N4-G | DOTE100N4-G | DOTE200N4-G | DOTE500N4-G | DOTE1000N4-G |
TORQUE RANGE
[N･m] | MIN.～MAX. | 0.2～10 | 2～20 | 5～50 | 10～100 | 50～500 | 100～1000 | 1～5 |
| 1digit | 0.001 | 0.002 | 0.005 | 0.01 | 0.02 | 0.05 | 0.1 |
TORQUE RANGE
[cN･m] | MIN.～MAX. | 20～1000 | 200～2000 | - | - | - | - | - |
| 1digit | 0.1 | 0.2 | - | - | - | - | - |
TORQUE RANGE
[kgf･cm / kgf･m] | MIN.～MAX. | 2～100 kgf･cm | 20～200 | 50～500 | 100～1000 | 200～2000 | 5～50 kgf･m | 10～100 |
| 1digit | 0.01 kgf･cm | 0.02 | 0.05 | 0.1 | 0.2 | 0.005 kgf･m | 0.01 |
TORQUE RANGE
[lbf･in] | MIN.～MAX. | 2～88 | 18～180 | 44～440 | 88～880 | 170～1700 | 440～4400 | 880～8800 |
| 1digit | 0.01 | 0.02 | 0.05 | 0.1 | 0.2 | 0.5 | 1 |
TORQUE RANGE
[lbf･ft] | MIN.～MAX. | - | 3.6～36 | 7.3～73 | 15～150 | 36～360 | 73～730 |
| 1digit | - | 0.005 | 0.01 | 0.02 | 0.05 | 0.1 |
| TORQUE WRENCH MAX EFFECTIVE LENGTH L’ [mm] | 255 | 410 | 660 | 1100 | 1650 |
| INLET DRIVE a [mm] | 6.35 | 9.53 | 12.7 | 19.1 | 25.4 |
| DIMENSION [mm] | L | Refer to dimensional drawing | 506 | 756 | 1276 | 1856 |
| B | 339 | 370 | 710 | 744 |
| H | 267 | 269 | 394 |
| L1 | - | 805 | 1195 |
| B1 | - | 510 | 635 |
| B2 | - | 96 | 156 |
| H1 | 113 | 162 |
| H2 | 171 | 169 | 174 | 238 | 247 |
| WEIGHT[kg] | 7 | 12 | 13 | 47 | 49 |
| ACCESSORIES | DOWN ADAPTER SQ.(MALE-FEMALE) | - | DA3-2 | 277, DA4-3 | - | - | DA8-6 |
| ADAPTER SQ.(MALE)-HEX(MALE) | - | 10・13・19
12・14・17 | 17・22・27
19・24・30 | 22・27・29
30・32・36 | 36・46
41・50 |
Accuracy ±１%+1digit
| STATISTICAL PROCESSING | Number of samples / max. / min. / mean value |
| HI / LO SETTING PATTERN | 10 setting pattern, A to J |
| MEASUREMENT MODE | PEAK / RUN |
| ZERO ADJUSTMENT | Automatic |
| DATA OUTPUT | RS232C compliant, USB B type for serial communication |
| RESET | Manual 0.0 / Auto 0.1 - 5.0 sec. |
| OPERATING CONDITION | 0～40℃ No condensation |
| POWER SUPPLY [V] | AC100～240V±10％ 50 / 60Hz |
Standard accessory
- AC adapter (BA-6)
- Step-down adapter (not supplied with DOTE10N4/DOTE10N4-G, DOTE200N4/DOTE200N4-G, or DOTE500N4/DOTE500N4-G models)
- Hex across flats adapter (not supplied with DOTE10N4/DOTE10N4-G models)
Dimensions

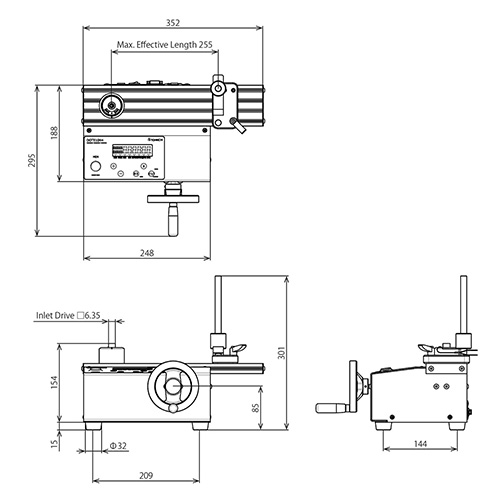

DOTE10N4-G |

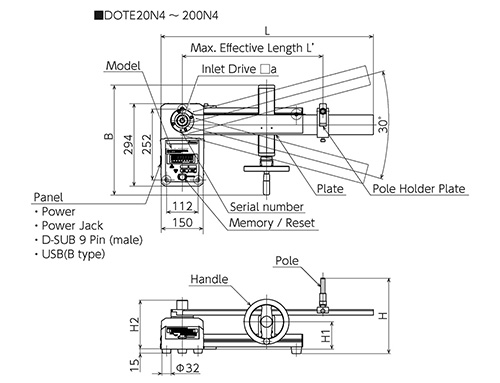

DOTE20N4-G～DOTE200N4-G |

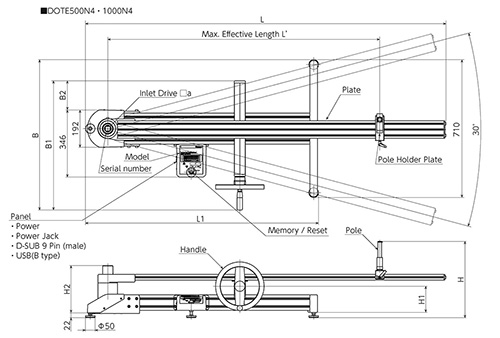

DOTE500N4-G～DOTE1000N4-G |
|
