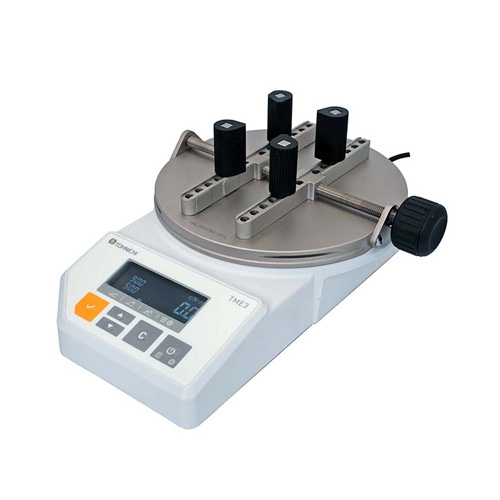

Ideal for measuring bottle cap opening torque. The torque meter TME2 series has been updated to the TME3-G series.
Application
- Bottle cap opening torque measurement.
- Cosmetic container torque measurement.
- Torque measurement of GL standard screws used for medicine containers.
- Electronic component rotary torque measurement.
- Working torque testing.
- Torsional torque measurement and strength testing.
Features

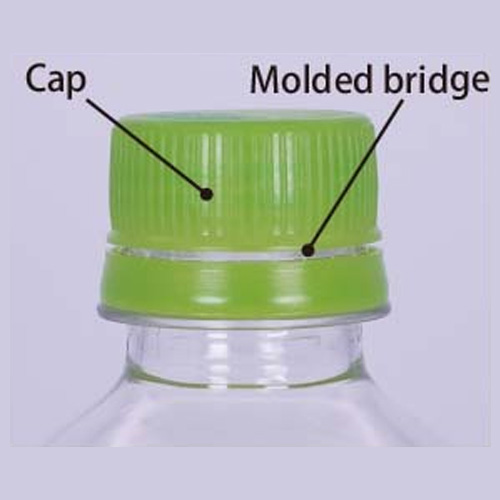

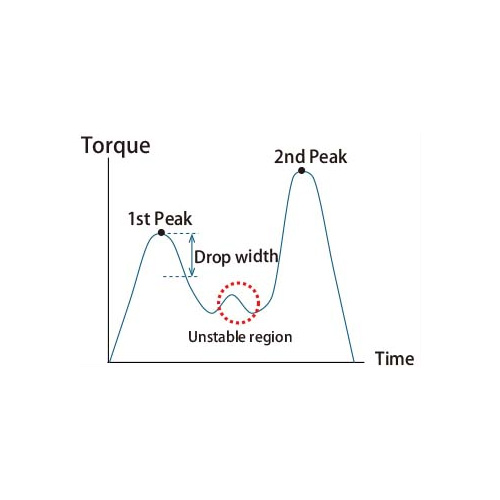

- TME-G can detect primary peak opening cap torque and secondary peak torque.
- The clamp moves the four poles, sliding them to hold your work firmly.
- Pole shape has been refined to permit a minimum chuck diameter of 7 mm. Pole anchors use a corotation prevention mechanism to grasp your work firmly.
- Icons for operation module and situation display make operation intuitive.
- For wired handling of measurement data, download (no charge) Data Receiver DtRcv, which can save to Excel® and CSV files, or application software for TME3 (APS for TME3), which can measure torque waveforms and be used for changing various settings. (Cannot be used for wireless operations.) *Cable No. 586 or No. 587 (sold separately) is required to connect TME3 to your computer.
- Accuracy ± 0.3% FS + 1 digit
- With CE marking
Specifications
| MODEL | TME20CN3-G | TME200CN3-G | TME500CN3-G | TME1000CN3-G | TME2000CN3-G |
TORQUE RANGE
［cN･m］ | MIN. - MAX. | 20-Feb | 20 - 200 | 50 - 500 | 100 - 1000 | 200 - 2000 |
| 1 DIGIT | 0.02 | 0.2 | 0.5 | 1 | 2 |
TORQUE RANGE
［N･m］ | MIN. - MAX. | ― | 0.2 - 2 | 0.5 - 5 | 10-Jan | 20-Feb |
| 1 DIGIT | ― | 0.002 | 0.005 | 0.01 | 0.02 |
TORQUE RANGE
［gf･cm］ | MIN. - MAX. | 200 - 2000 | ― | ― | ― | ― |
| 1 DIGIT | 2 | ― | ― | ― | ― |
TORQUE RANGE
［kgf･cm］ | MIN. - MAX. | 0.2 - 2 | 20-Feb | May-50 | 10 - 100 | 20 - 200 |
| 1 DIGIT | 0.002 | 0.02 | 0.05 | 0.1 | 0.2 |
TORQUE RANGE
［ozf･in］ | MIN. - MAX. | 2.8 - 28 | 28 - 280 | 70 - 700 | 140 - 1400 | 280 - 2800 |
| 1 DIGIT | 0.02 | 0.2 | 0.5 | 1 | 2 |
TORQUE RANGE
［lbf･in］ | MIN. - MAX. | 0.17 - 1.7 | 1.7 - 17 | 4.4 - 44 | 8.8 - 88 | 17.5 - 175 |
| 1 DIGIT | 0.002 | 0.02 | 0.05 | 0.1 | 0.2 |
DIMENSIONS
［mm］ | OVERALL LENGTH | 273.5 |
| WIDTH | 217 |
| HEIGHT | 116.5 |
| CHUCKABLE DIAMETER φ | 7 - 190 |
| WEIGHT ［kg］ | 3.5 |
Accuracy ±0.3%F.S. + 1digit
Common Specifications
| DATA MEMORY | 1000 data |
| STATISTICAL PROCESSING | Number of samples / max. / min. / mean value / dispersion width / standard deviation |
| MEASURING MODE | PEAK / RUN / DOUBLE PEAK |
| DATA OUTPUT | Serial communication compatible with USB connector |
| RESET | Manual / Auto ( 0.5-5.0 sec. freely changeable ) |
| CONTINUOUS DATA OUTPUT INTERVALS | Approx. every 20ms ( Waveform capture interval for application software ） |
| POWER | AC100 - 240V ± 10% |
| POWER CONSUMPTION | Less than 5W |
| OPERATING TEMPERATURE | 0 - 40℃（ no condensation ） |
| MEASURABLE MASS | Less than 5kg |
Notes
- The supplied USB cable (No. 587) connects to power source. For wired data communication, please place a separate order for either No. 587 (TME3 side: Type-C/computer side: Type-A) or No. 586 (TME3 side: Type-C/computer side: Type-C).
- Excel is either a registered trademark or a trademark of Microsoft Corporation in the United States and other countries.
Standard accessory
- AC Adapter (BA-7)
- USB Cable (No. 587)
- Support Plate (standard accessory only for TME1000CN3-G and TME2000CN3-G)
|
