Application
- For assembly and mass-production.
Features
- Preset interchangeable head torque wrenches
- The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake.
- A wide selection of interchangeable heads, letting you choose the right one for the task and reducing overall purchasing caosts.
- A clear "click" sound signals tightening completion upon reaching the set torque.
- CSP25N3X10D CSP50N3X12D, CSP50N3X15D, CSP100N3X15D and CSP140N3X15D can be used with AH adjustable open end interchangeable heads.
- Tohnichi’s interchangeable head torque wrenches can be used with our interchange head lineup, which offers the best selection in the world, making these wrenches ideal for your work.
- Except for some products, the CSP/CSP-MH series are compliant with ISO 6789:2017 starting January 2022. For more information, see the technical data "Initiatives for ISO 6789:2017" at the bottom of the screen.
Specifications
Accuracy ±3%
| MODEL | CSP 2NX6D | CSP 5NX6D | CSP1.5N4X8D | CSP 3N4X8D | CSP 6N4X8D | CSP 12N4X8D |
| S.I. RANGE［N・m］ | 0.4～2 | 1～5 | 0.3～1.5 | 0.6～3 | 1～6 | 2～12 |
| METRIC RANGE［kgf・cm］ | 4～20 | 10～50 | 3～15 | 6～30 | 10～60 | 20～120 |
| AMERICAN RANGE［lbf・in］ | 3.5～17.7 | 8.8～44.2 | 3～13 | 6～25 | 10～50 | 20～100 |
APPLICABLE BOLT
（REFERENCE） | COMMON STEEL | M4 | M5, M6 | M3（M3.5） | M4（M4.5） | M5, M6 | （M7） |
| HIGH TENSION | （M3.5） | （M4.5） | M2.5 | M3（M3.5） | M4（M4.5） | M5, M6 |
| MAX HAND FORCE［N］ | 17.5 | 44 | 13 | 26 | 39 | 79 |
| DIMENSION［mm］ | EFFECTIVE LENGTH | L | 114 | 118 | 153 |
| OVERALL LENGTH | L' | 133 | 130 | 165 |
| HEAD | d3 | 6 | 8 |
| BODY | m | 12 | 19 |
| n | 7.3 | 9.2 |
| d | 11 | 15 |
| D | 11 | 24 |
| WEIGHT［kg］ | 0.06 | 0.2 |
Accuracy ±3%
| MODEL | CSP 25N3X10D | CSP 25N3X10D-MH | CSP 50N3X12D | CSP 50N3X12D-MH | CSP 50N3X15D | CSP 50N3X15D-MH |
| S.I. RANGE［N・m］ | 5～25 | 10～50 |
| METRIC RANGE［kgf・cm］ | 50～250 | 100～500 |
| AMERICAN RANGE［lbf・in］ | 50～200 | 100～400 |
APPLICABLE BOLT
（REFERENCE） | COMMON STEEL | M8 | M10 |
| HIGH TENSION | （M7） | M8 |
| MAX HAND FORCE［N］ | 134 | 240 | 229 |
| DIMENSION［mm］ | EFFECTIVE LENGTH | L | 186 | 208 | 218 |
| OVERALL LENGTH | L' | 195 | 215 | 220 |
| HEAD | d3 | 10 | 12 | 15 |
| BODY | m | 19 | 25.5 |
| n | 9.2 | 11.2 |
| d | 15 | 20 |
| D | 29 | 15 | 34 | 20 | 34 | 20 |
| WEIGHT［kg］ | 0.2 | 0.3 |
Accuracy ±3%
| MODEL | CSP 100N3X15D | CSP 100N3X15D-MH | CSP 140N3X15D | CSP 140N3X15D-MH | CSP 200N3X19D | CSP 280N3X22D | CSP 420N3X22D |
| S.I. RANGE［N・m］ | 20～100 | 30～140 | 40～200 | 40～280 | 60～420 |
| METRIC RANGE［kgf・cm］ | kgf・cm 200～1000 | 300～1400 | 400～2000 | kgf・m 4～28 | 6～42 |
| AMERICAN RANGE［lbf・in］ | 200～850 | 300～1000 | 350～1600 | 350～2500 | 600～3600 |
APPLICABLE BOLT
（REFERENCE） | COMMON STEEL | M12(M14) | M16 | (M18) | M20 | (M22) M24 |
| HIGH TENSION | M10 | M12 | (M14) | M16 | (M18) |
| MAX HAND FORCE［N］ | 344 | 400 | 449 | 424 | 442 |
| DIMENSION［mm］ | EFFECTIVE LENGTH | L | 291 | 350 | 445 | 660 | 950 |
| OVERALL LENGTH | L' | 290 | 350 | 430 | 625 | 920 |
| HEAD | d3 | 15 | 19 | 22 |
| BODY | m | 28 | 35 | 38.6 |
| n | 12.2 | 15 | 16.1 |
| d | 21.7 | 27.2 | 30 |
| D | 34 | 21.7 | 34 | 21.7 | 27.2 | 40 |
| WEIGHT［kg］ | 0.45 | 0.55 | 1 | 1.4 | 2.7 |
Notes
- Overall length does not include interchangeable head.
- Except for CSP2NX6D, CSP5NX6D, CSP1.5N4X8D, and CSP3N4X8D, products are compliant with ISO 6789:2017 starting January 2022.
- Calibration Certificates will be different from older products.

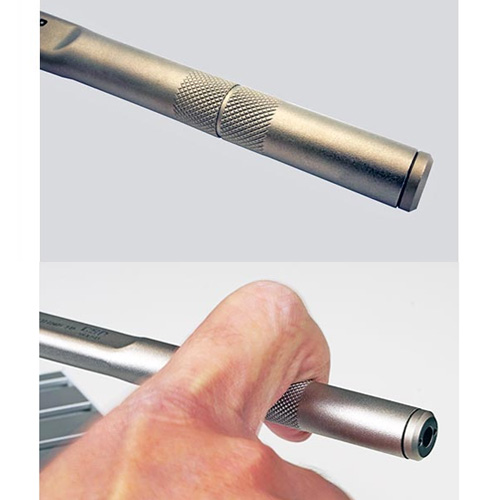

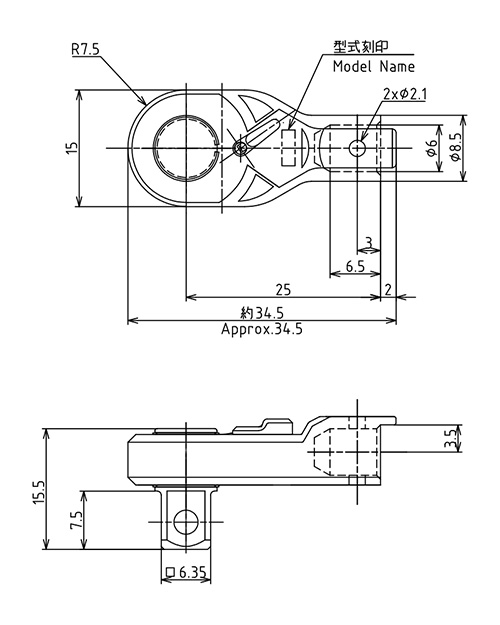

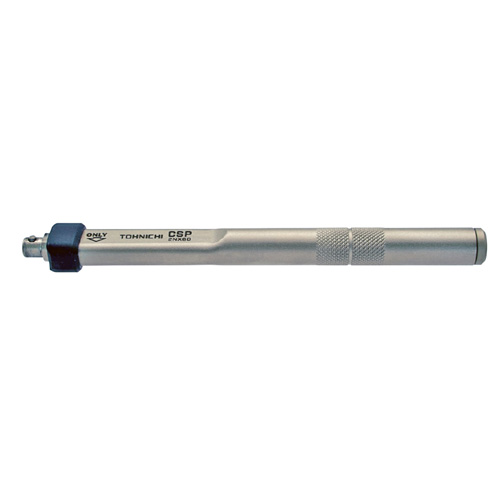

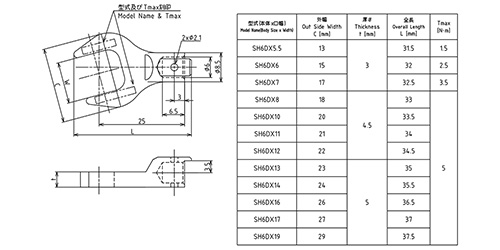

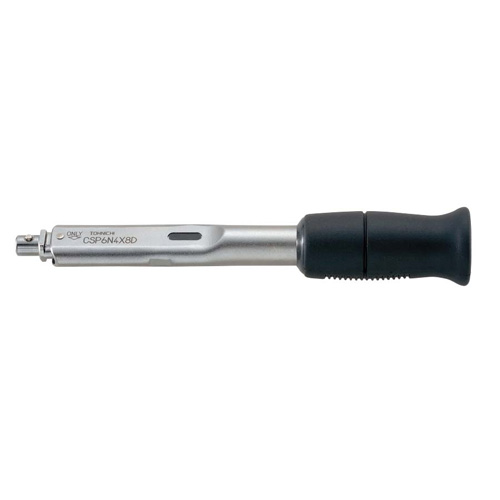

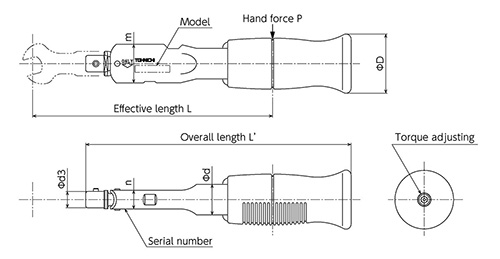

Dimensions

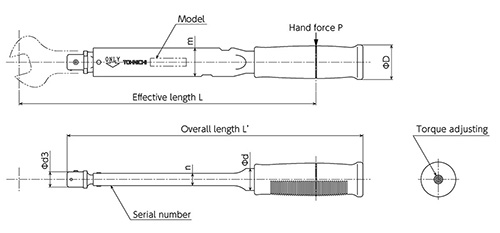

CSP1.5N4～12N4 |
CSP25N3～140N3 |

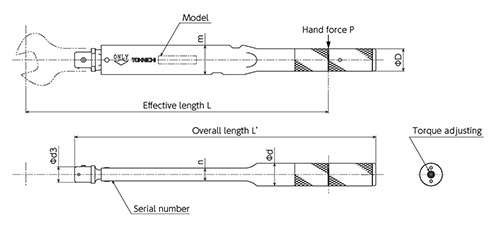

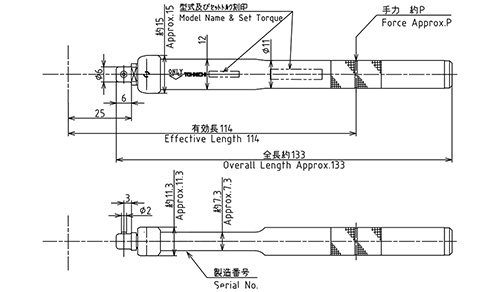

CSP2N/5N, CSP-MH, CSP200N3~420N3 |
|
